Dry-type iron core reactor

Dry-type iron core starting reactor

Overview

Execution standard

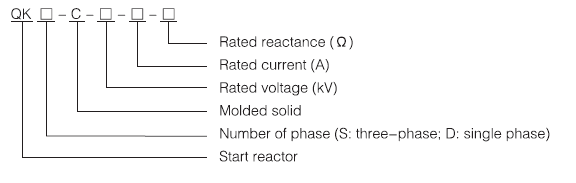

Model
Performance
Parameters
Appearance

- GB/T17211-1998 《Load Guidance of Dry Power Transformer》
- GB10229 IEC60076-6
Basic ordering data
- Rated voltage;
- Rated current;
- Rated reactance;
- Each start and operation period; continuous operation frequency;
- Start and cooling cycle;
- Utilization conditions (indoor);
- According to the application of parallel reactor, other required performance data is marked in the contract.

QKSC Series iron core series reactor technology parameters
Model	Rated voltage (kV)	Rated volume (kVar)	Rated impedance (Ω)	Rated current (A)	Outline dime.							Weight (kg)
Model	Rated voltage (kV)	Rated volume (kVar)	Rated impedance (Ω)	Rated current (A)	a	b	c	d	f	h	i	Weight (kg)
QKSC-3-1600-0.3	3	2304	0.3	1600	1080	790	1465	550	1326	397	340	1420
QKSC-3-2000-0.2	3	2400	0.2	2000	1080	800	1383	550	1250	398.5	340	1410
QKSC-3-2000-0.3	3	3600	0.3	2000	1160	790	1585	550	1446	41.05	365	1860
QKSC-3-2500-0.3	3	5625	0.3	2500	1300	900	1893	660	1746	435	415	1930
QKSC-6-189-3	6	321	3	189	880	600	953	400	841	321	275	380
QKSC-6-282-1.7	6	406	1.7	282	880	600	953	400	841	321	275	380
QKSC-6-350-2.9	6	1066	2.9	350	980	740	114	550	976	342.5	310	665
QKSC-6-502-1.38	6	1044	1.38	502	960	740	1133	550	1016	337	300	645
QKSC-6-503-1.55	6	1176	1.55	503	990	740	1272	550	1136	342.5	310	900
QKSC-6-556-2.45	6	2272	2.45	556	110	740	1193	550	1055	361.5	350	980
QKSC-6-690-1.19	6	1700	1.19	690	990	740	1215	550	1079	342.5	310	770
QKSC-6-900-0.9	6	2187	0.9	900	1035	740	1205	550	1071	348	325	830
QKSC-6-1089-1.17	6	4162	1.17	1089	110	740	1523	550	1386	361.5	350	1300
QKSC-6-1600-0.51	6	3917	0.51	1600	1190	850	1319	660	1184	412.5	375	1395
QKSC-6-1680-0.68	6	5758	0.68	1680	1190	850	1499	660	1356	412.5	375	1590
QKSC-10-308-8.1	10	2305	8.1	308	1110	740	1337	550	1201	361.5	350	1085
QKSC-10-450-1.92	10	1166	1.92	450	1030	740	1123	550	985	343	410	700
QKSC-10-787-2.12	10	3939	2.12	787	1120	740	1312	550	1191	369	350	1225

Schematic diagram of appearance and installation of dry iron core serial reactor
